Inconel Sheets and Plates

Layla Sheets and Plates is a top-notch manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Inconel Sheets and Plates** designed for high-temperature, chemical, and industrial uses. With state-of-the-art production facilities and rigorous quality control measures, the company guarantees that every sheet and plate boasts precise dimensions, a smooth surface finish, and outstanding mechanical properties. Layla Sheets and Plates caters to various industries, including aerospace, power generation, chemical processing, petrochemical, and marine. Their Inconel Sheets and Plates are highly regarded for their remarkable strength, resistance to corrosion, and stability in extreme conditions, making them perfect for high-performance and demanding industrial applications.

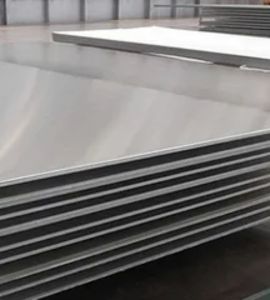

Inconel Sheets

ASME SB 168 Plate

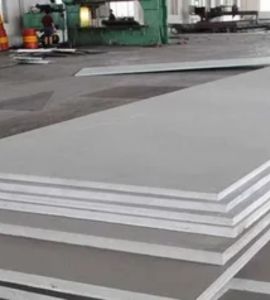

Inconel Hot Rolled Plates

Inconel Alloy Hot Rolled Plates Egypt, ASTM B168 Alloy Plates United kingdom, Inconel Cold Rolled Sheets Alexandria, Inconel Alloy Sheets Manufacturers in Cairo, Inconel sheets suppliers Cairo, Inconel plates cost Alexandria, Inconel alloy sheets and plates price per kg Port Said, Nickel alloy plates price in Alexandria, ASTM b168 alloy plates price list in Egypt, Inconel sheets price Alexandria, Egypt.

Inconel Sheets and Plates are made from nickel-chromium-based alloys, with their compositions varying by grade. Typically, they contain between 50–75% nickel, 14–22% chromium, and other elements like molybdenum, cobalt, titanium, or iron to boost strength and corrosion resistance. These materials showcase high tensile strength, excellent yield strength, and impressive ductility, maintaining their mechanical integrity even at elevated temperatures of up to 1,100°C (depending on the grade). They resist oxidation, carburization, and thermal fatigue, while also offering good weldability, formability, and long-lasting durability in harsh environments.

Inconel Sheets and Plates Specification

Specifications :ASTM B168, ASME SB168, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13

Standards : ASTM, ASME and API

Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm

Thickness : 0.1mm to 12 mm Thk

Length : 12500 mm

Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.

Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)

Inconel Sheets and Plates Mechanical Properties

Density	8.4 g/cm³	8.1g/cm³	8.4 g/cm³	8.2 g/cm³
Melting Range,℃	1370-1425 ℃	1320-1370℃	1290-1350℃	1260-1340 ℃
Elongation %	30min.	30 min.	30 min.	30 min.
Tensile strength – Mpa	550min.	650min.	760min.	965min
Yield strength – Mpa	240min.	300min.	345min.	550 min.
Brinell hardness (HB)	≤195	≤220	≤220	≤363

Inconel Sheets and Plates Equivalent

Alloy 600	Inconel 600	N06600	2.4816	8.42
Alloy 601	Inconel 601	N06601	2.4851	8.2
Alloy 625	Inconel 625	N06625	2.4856	8.44
Alloy 718	Inconel 718	N07718	2.4668	8.19

Inconel Plates Egypt, Inconel Alloy Coils Suppliers United kingdom, Inconel Cold Rolled Sheets Alexandria, Inconel Hot Rolled Plates Cairo, Inconel Sheets Cairo, Inconel® Alloy Sheets Stockist in Alexandria, ASTM B168 Inconel HR Plates Dealer Port Said, Inconel Cold Rolled Sheets Exporter Egypt, Inconel Sheets Supplier in Alexandria, Egypt.

Inconel Sheets and Plates Dimension

Surface finish	Thickness (mm)	Width (mm)
2B – Cold rolled, heat treated, pickled, skin passed	0.25–8.0	max. 2032
2D – Cold rolled, heat treated, pickled	0.4–6.35	max. 1524
2E – Cold rolled, heat treated, mechanically descaled	0.4–8.0	max. 2032
2R – Cold rolled, bright annealed	0.25–3.5	max. 1524
2H – Work hardened	0.4–6.35	max. 1524
Polished, brushed	0.5–4.0	max. 1524

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Contact Now

Largest Inconel Sheets and Plates Manufacturer and Exporter in Alexandria, Egypt

Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Inconel Alloy Hot Rolled (HR) Sheet & Plates Egypt, Inconel Cold Rolled (CR) Sheet & Plate United kingdom, ASME SB 168 Inconel Sheet Alexandria, Inconel Plates Stockists in Cairo, Inconel Sheet and Plate Supplier in Cairo, Inconel Circles Alexandria, Inconel Perforated Sheets Supplier in Port Said.

Inconel sheets and plates offer several key advantages, making them ideal for high-performance applications. Their exceptional resistance to oxidation, corrosion, and heat ensures long-term durability in extreme environments, such as high-temperature industrial processes and aerospace components. Inconel maintains its strength and integrity at elevated temperatures, making it ideal for gas turbines, reactors, and exhaust systems. Additionally, these materials exhibit excellent fatigue and thermal-fatigue strength, along with good weldability and formability. Their versatility and reliability make Inconel a preferred choice in industries requiring superior material performance under harsh conditions.

Types of Inconel Sheets and Plates

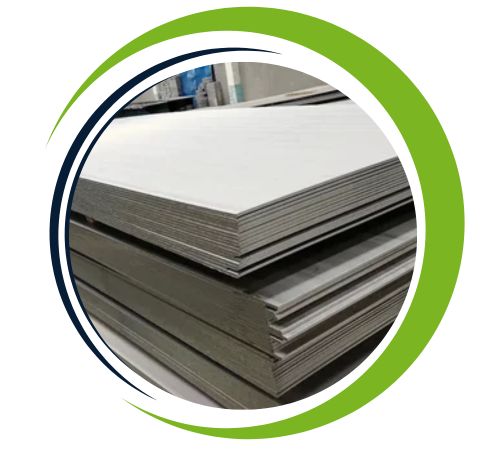

Inconel Hot Rolled Sheets

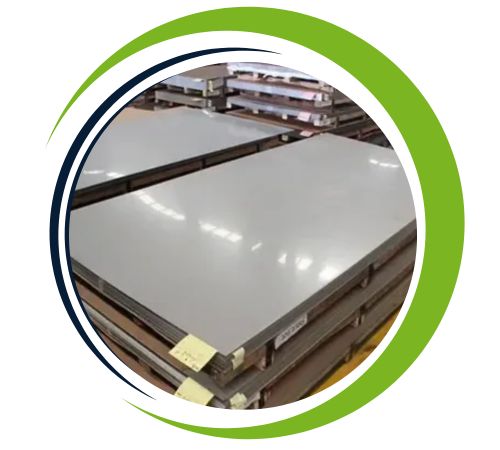

Inconel Cold Rolled Sheets and Plates

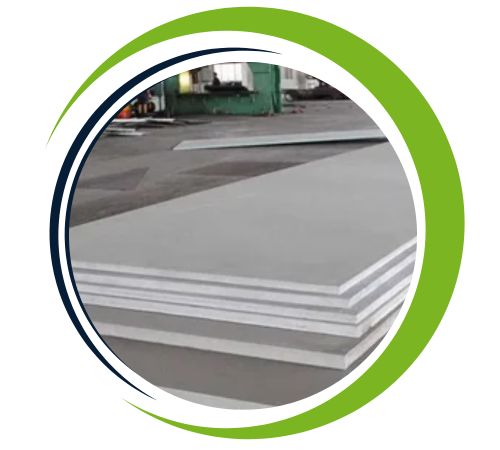

Inconel Shim Plates

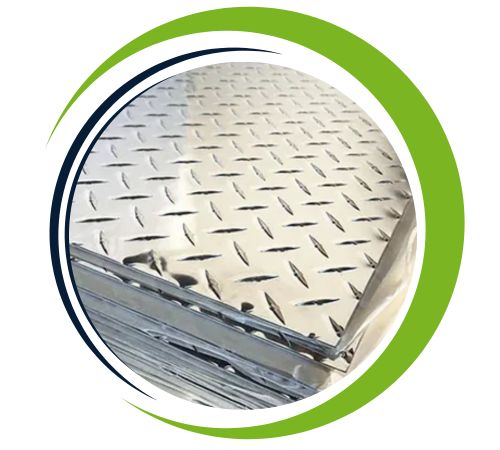

Inconel Chequered Plates

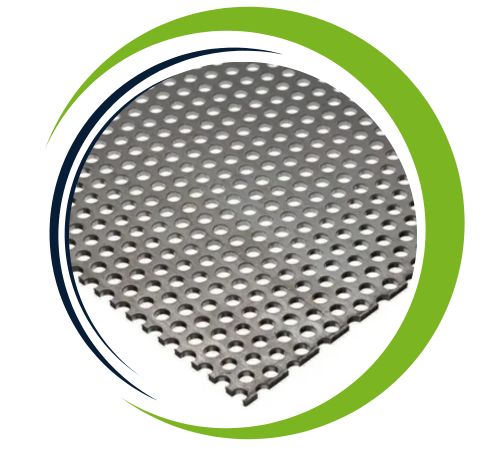

Inconel Perforated Sheets

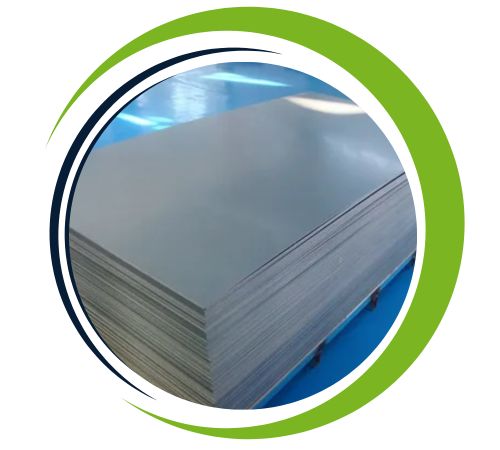

Inconel Cold Drawn Sheets

Inconel Circles Egypt, Inconel Perforated Sheets Supplier in United kingdom, Inconel Alloy Shim Sheets Alexandria, ASTM B168 Inconel Sheet & Plate Exporter Cairo, Inconel Coils Cairo, Inconel Export Quality Sheet & Plate Stockists in Alexandria, Inconel Sheets and Plates Port Said.

Are Custom Sizes Available for Inconel Sheets and Plates?

Yes, we offer custom sizes for Inconel Sheets and Plates to meet specific project needs. Our team at Layla Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Inconel Sheets and Plates Weight Chart

Thickness	Alloy	Plate Weight per Unit Area	Density
3/16 inches	Inconel	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	Inconel	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	Inconel	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	Inconel	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	Inconel	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	Inconel	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	Inconel	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	Inconel	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	Inconel	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	Inconel	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	Inconel	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	Inconel	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	Inconel	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	Inconel	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	Inconel	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	Inconel	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Application Industry of Inconel Sheets and Plates

Inconel Sheets and Plates find extensive use in industries that demand high strength, corrosion resistance, and heat tolerance. In aerospace, they are utilized in turbine blades, combustion chambers, and high-temperature structural components. In chemical and petrochemical facilities, they serve in reactors, heat exchangers, and piping systems that handle aggressive chemicals. The power generation sector employs them in boilers, gas turbines, and high-temperature equipment. Additionally, marine and industrial applications use them for components exposed to seawater and corrosive environments. Their unique combination of strength, corrosion resistance, and thermal stability makes Inconel Sheets and Plates a preferred choice in these demanding applications.
