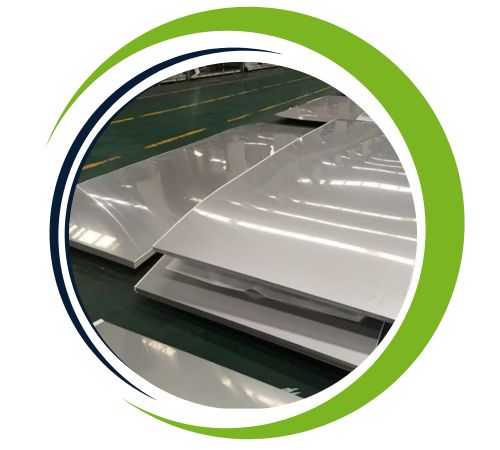

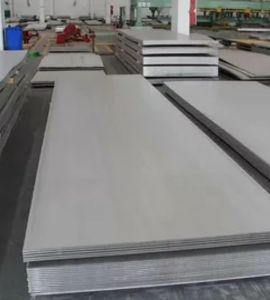

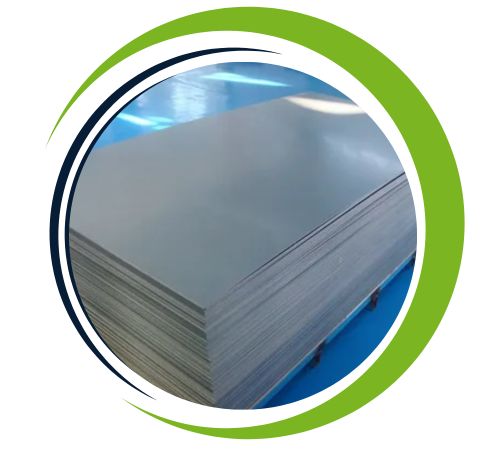

Layla Sheets and Plates, a prominent manufacturer and supplier located in Cairo, Egypt, takes pride in delivering high-quality Stainless Steel 304 Sheets and Plates. These products are celebrated for their remarkable corrosion resistance, durability, and versatility. Crafted from top-notch raw materials and utilizing cutting-edge fabrication techniques, they guarantee exceptional strength and precise dimensions. Stainless Steel 304 is the go-to choice for many, thanks to its excellent formability and ease of fabrication, making it perfect for a variety of applications in industrial, architectural, and home settings where longevity and visual appeal are key.
These Stainless Steel 304 Sheets and Plates are made up of roughly 18% chromium and 8% nickel, which give them outstanding resistance to oxidation and corrosion in different environments. They boast a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with good elongation and excellent weldability. The low carbon content boosts their resistance to intergranular corrosion, while their austenitic structure ensures they maintain superior mechanical properties, even in colder temperatures.

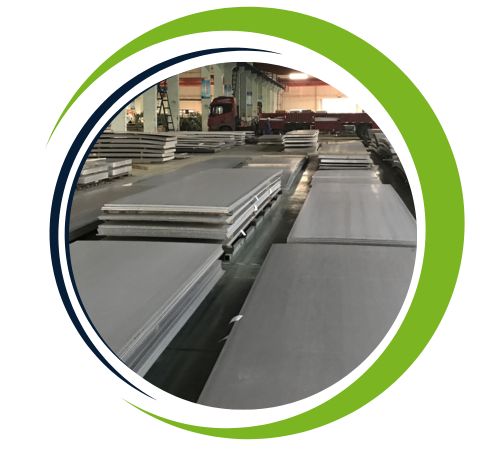

| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |

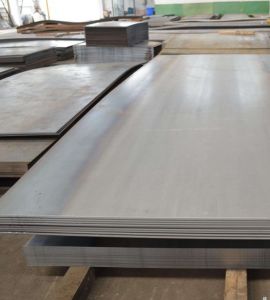

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

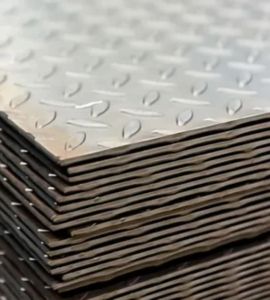

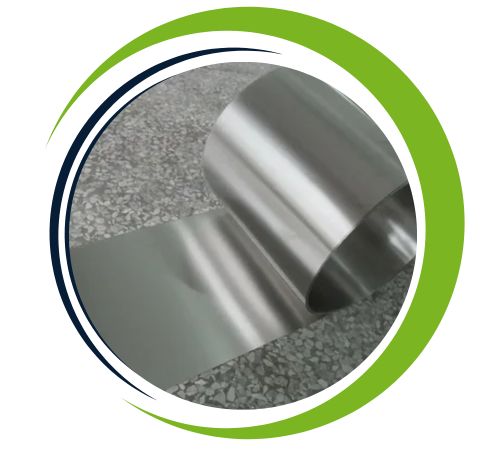

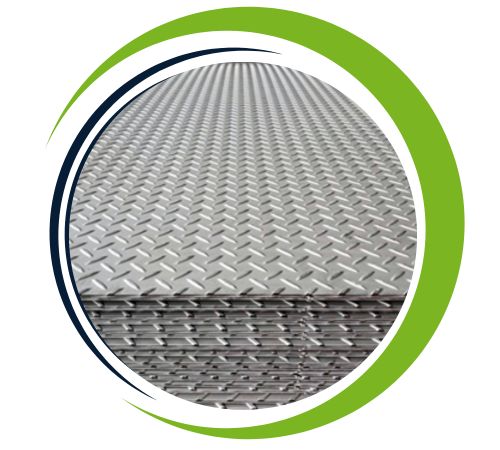

| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |

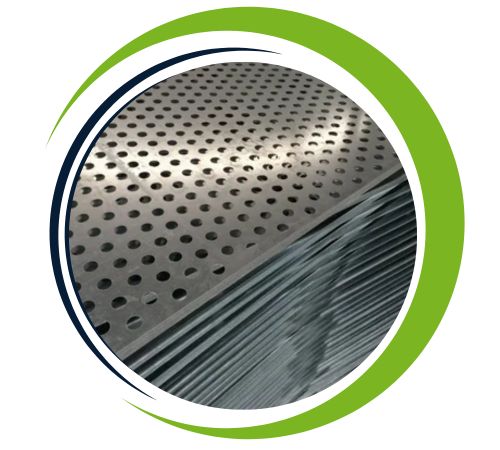

| Hole Dia mm | Hole Centres mm | O/A | Finish | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 2B | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 2B | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 2B | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 2B | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 2B | 1,0 | 2000 x 1000 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Layla Sheets and Plates based in Alexandria, Egypt, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 304 sheets and plates offer unique advantages, including excellent resistance to corrosion and oxidation, ensuring durability in harsh environments They have high tensile strength, ductility and weldability, and enabling versatility for a variety of requirements. These sheets and plates withstand extreme temperatures, making them suitable for both cryogenic and high temperature applications. Their smooth surfaces are easy to clean and easy to use, ideal for the food processing and pharmaceutical industries. Furthermore, their aesthetic appeal, low maintenance and recyclability make them a cost-effective, non-environmentally friendly choice for construction, automotive and ready-to-use will be used.
You’ll find Stainless Steel 304 Sheets and Plates being utilized in a variety of industries, such as food processing, chemicals, construction, marine, and pharmaceuticals. They’re perfect for crafting kitchen equipment, tanks, heat exchangers, architectural panels, and automotive trim. Their high corrosion resistance and hygienic surface make them ideal for sanitary applications, and their ability to endure high temperatures and exposure to the elements ensures they perform well over the long haul, whether in industrial settings or decorative uses.
